Overview

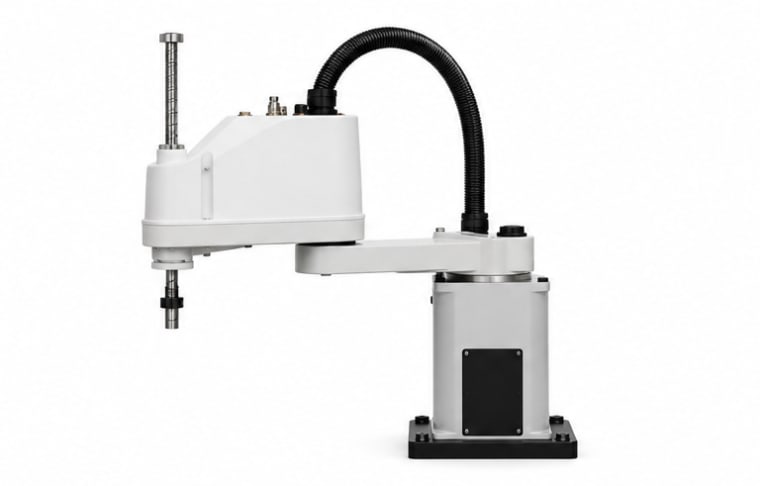

The SCARA Robot is a high-precision, 4-axis industrial robot designed for educational and research use in automation and manufacturing labs. Its selective compliance arm allows fast, accurate horizontal movements ideal for assembly, sorting, and pick-and-place tasks. Equipped with a teach pendant and PC-based control software, it enables students to learn robot programming, motion path planning, and industrial automation concepts in a hands-on environment.
Specifications
| 4-axis articulated arm | |
| Payload | up to 5 kg |
| Reach | 400 mm to 600 mm |
| Repeatability | +/-0.02 mm |
| Drive | AC servo motors |
| Control | teach pendant + PC software |
| Communication | RS-232 / USB |
| Power supply | 220V AC, 50 Hz |
