Overview

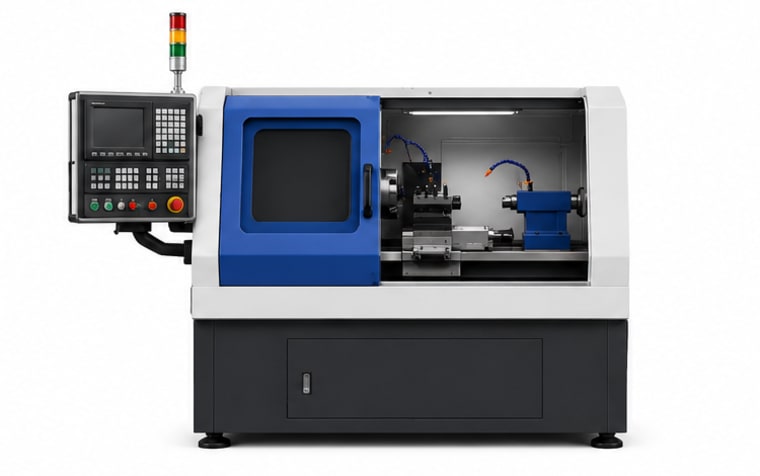

The CNC Lathe Trainer is a compact, educational-grade computer numerical control lathe designed for engineering and polytechnic students. It replicates real industrial turning operations including facing, turning, threading, and grooving on a safe, lab-scale platform. The trainer features an intuitive CNC controller compatible with standard G and M codes, enabling students to write, simulate, and execute machining programs. It bridges the gap between theoretical CNC concepts and practical shop-floor skills.
Specifications
| Control | CNC with G and M code support |
| Spindle speed | 100 to 3000 RPM |
| Swing over bed | 200 mm |
| Distance between centres | 300 mm |
| Chuck size | 100 mm (3-jaw) |
| Feed rate | 0.01 to 500 mm/min |
| Tool turret | 4-station |
| Power supply | 220V AC, 50 Hz |
