Overview

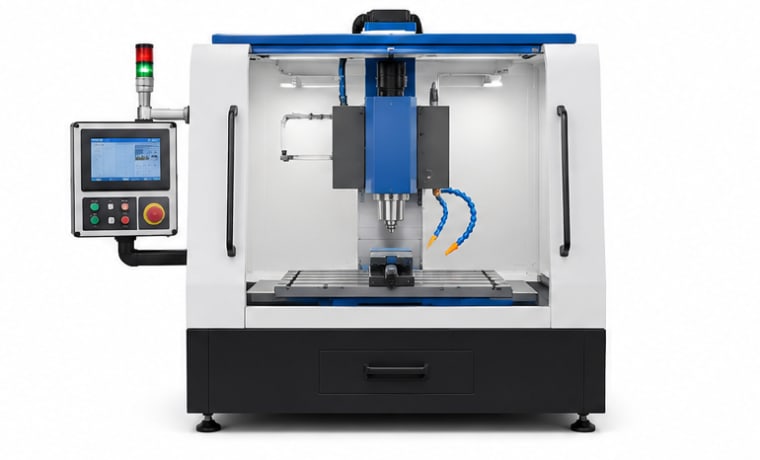

The CNC Milling Trainer is an educational 3-axis CNC milling machine built for engineering labs and vocational training centres. It allows students to perform milling, drilling, contouring, and pocketing operations while programming tool paths using industry-standard G and M codes. The machine includes a PC-based control system with simulation software, enabling safe program verification before actual cutting. It develops practical skills in CNC setup, work holding, tool selection, and precision machining.
Specifications
| Axes | X |
| Y | |
| Z (3-axis) | |
| Table size | 300 mm x 150 mm |
| Spindle speed | 500 to 10000 RPM |
| Spindle taper | ER-16 collet |
| Feed rate | 0 to 3000 mm/min |
| Rapid traverse | 5000 mm/min |
| Positioning accuracy | +/-0.01 mm |
| Power supply | 220V AC |
| 50 Hz | |
