Overview

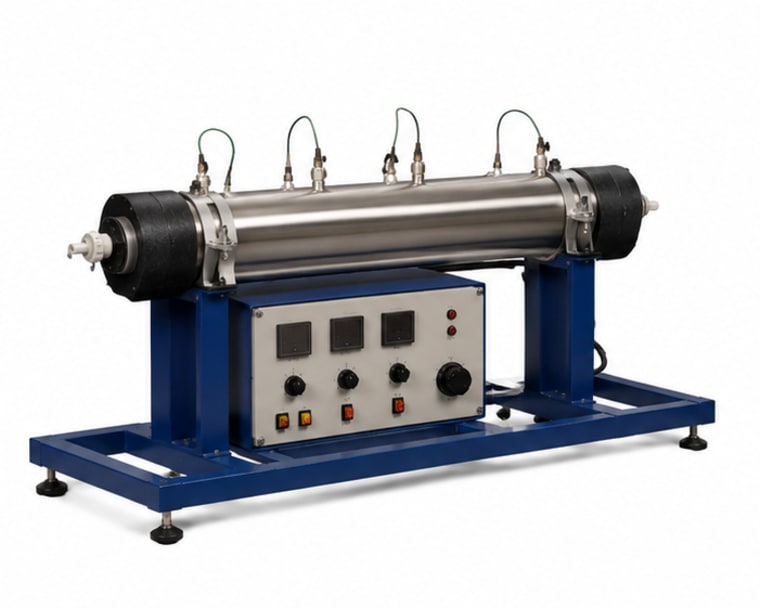

The Heat Transfer through Lagged Pipe apparatus investigates radial heat conduction in a cylindrical geometry covered with lagging (insulating) material. A central heated rod is surrounded by concentric layers of different insulating materials, and temperature is measured at each radial position. The experiment allows determination of individual and combined thermal resistances of cylindrical layers, comparison of insulation efficiencies, and validation of the logarithmic temperature profile predicted by heat conduction theory for cylindrical systems.
Specifications
| Heater rod | nichrome, 200W |
| Lagging material | 2 to 3 layers |
| Temperature sensors | thermocouples, radial positions |
| Temperature range | ambient to 200 degrees C |
| Cylinder length | 300 mm (approx.) |
| Outer diameter | 150 mm (approx.) |
| Display | digital multi-channel indicator |
| Power supply | 220V AC, 50 Hz |
