Computerized Single Cylinder 4 Stroke VCR Diesel Engine with open ECU & EGR with Electric Brake Dynamometer
A variable compression ratio diesel engine test rig with open ECU, EGR, and electric dynamometer for compression ratio effects study.
Overview

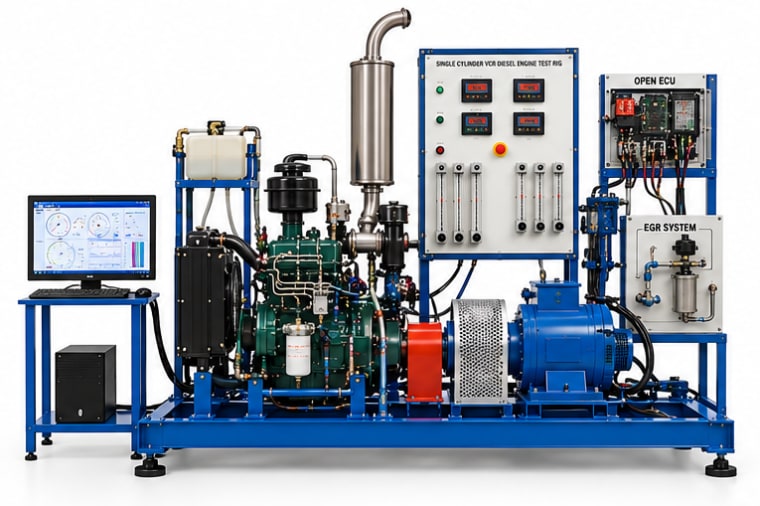

This advanced computerised engine test rig features a Variable Compression Ratio (VCR) single cylinder 4-stroke diesel engine with open ECU and EGR control. The tilting cylinder block mechanism allows continuous adjustment of compression ratio without stopping the engine, enabling study of its direct effect on performance, emissions, and combustion characteristics. The integrated data acquisition system captures P-V diagrams, indicated mean effective pressure, thermal efficiency, fuel consumption, and exhaust emissions at each compression ratio setting. This rig is uniquely suited for advanced research in engine optimisation, combustion analysis, and low-emission diesel engine development.
Specifications
| Engine type | single cylinder, 4-stroke, diesel, VCR |
| Compression ratio range | 12:1 to 18:1 (variable, on-the-fly) |
| EGR | electronically controlled |
| Dynamometer | electric brake |
| Speed range | 600 to 3600 RPM |
| Pressure sensor | piezoelectric, in-cylinder |
| Data acquisition | real-time, crank-angle resolved |
| Power supply | 415V AC, 3-phase, 50 Hz |
