Overview

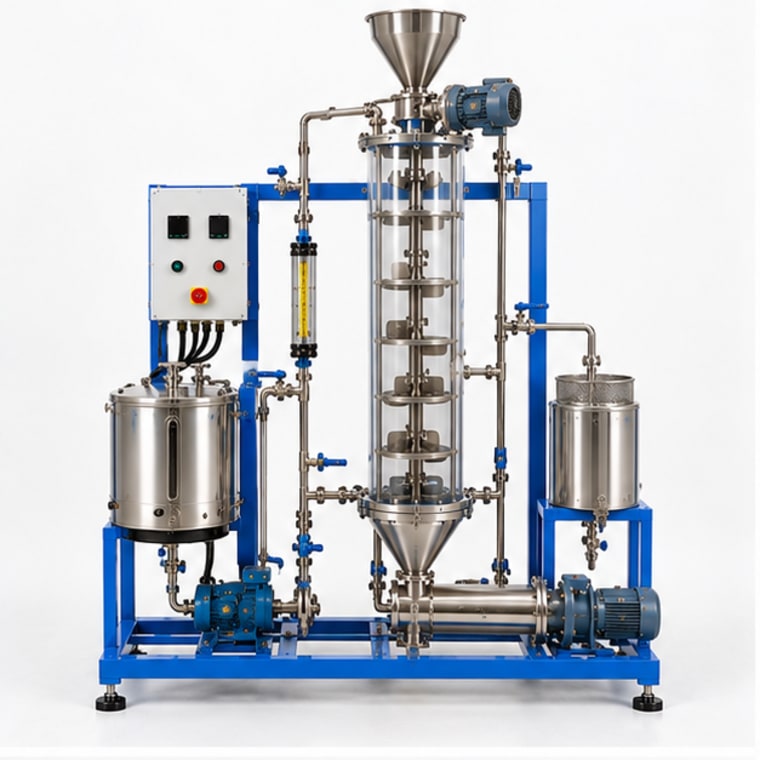

The Solid-Liquid Extraction Bonotto Type apparatus simulates continuous counter-current leaching of soluble components from solid particles using a solvent. The Bonotto extractor features a vertical column with rotating discs or agitators that transport the solid phase upward while solvent flows downward, achieving continuous counter-current contact. Students determine extraction efficiency, solute recovery, and solvent-to-feed ratios under different operating conditions. The apparatus is relevant to oilseed extraction, sugar production, herbal extraction, and pharmaceutical leaching processes.
Specifications
| Extractor type | Bonotto (vertical |
| counter-current) | |
| Column | stainless steel |
| multiple compartments | |
| Agitator | rotating disc type |
| Solids feed | screw feeder or batch loading |
| Solvent flow | metering pump |
| 1 to 10 LPH | |
| Temperature | ambient to 60 degrees C |
| Sampling | inlet and outlet |
| Power supply | 220V AC |
| 50 Hz | |
