Overview

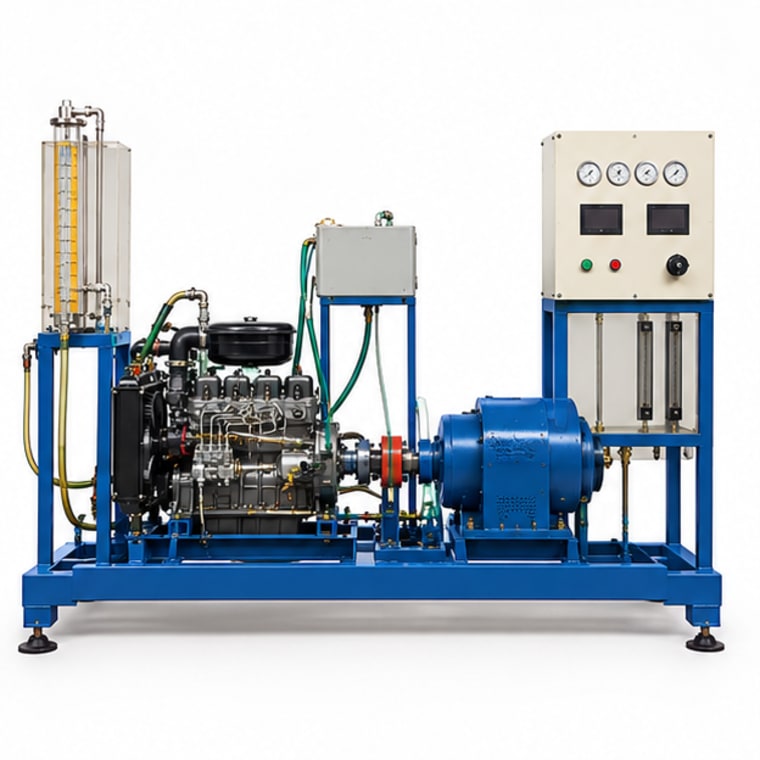

The Three Cylinder Four Stroke Diesel Engine Test Rig features a multi-cylinder compression-ignition engine coupled to a hydraulic or eddy current dynamometer. The additional cylinders compared to single-cylinder rigs produce a smoother torque output and allow measurement of per-cylinder fuel contribution using cylinder cut-out tests. Students generate a full set of performance curves including brake power, BMEP, BSFC, thermal efficiency, and smoke opacity across the engine operating range. The multi-cylinder aspect also allows study of cylinder balancing, injection timing effects per cylinder, and comparison of single vs. multi-cylinder engine characteristics.
Specifications
| Engine type | 3-cylinder, 4-stroke, diesel, water-cooled |
| Total displacement | 600 to 1500 cc |
| Dynamometer | hydraulic or eddy current |
| Speed range | 600 to 3600 RPM |
| Fuel | diesel, consumption measured by burette |
| Air flow | intake air box with orifice |
| Smoke measurement | opacity meter |
| Power supply | 415V AC, 3-phase, 50 Hz |
